TP-6.5 Signature

The new TP-6.5 Signature Phono Stage is designed to complement and match the TL-6.5 and TL7.5 Linestage Preamplifiers in sonic performance, user interface and cosmetics. This all-new product was designed from the ground up to redefine the current state of the art in standalone MC step ups and to stand as a reference phono stage worthy of the top VTL linestage preamplifiers, the TL7.5 Series II and TL-6.5.



The new TP-6.5 will appeal to current VTL linestage owners who have been waiting patiently for a matching phono stage. The new phono stage employs hybrid JFET/tube circuitry for quiet operation, multiple low-noise cascaded regulators and shielded power supplies for dynamics, accurate 4-corner passive RIAA equalization and 68dB of gain from the balanced outputs, all in a single chassis unit. All of the required user settings are offered via the front panel as well as by remote control.

The new design yields a wide and deep soundstage, realistic image proportions, and startling dynamic range and speed, with massive headroom capability and low noise. The TP-6.5 easily resolves the most delicate and nuanced aspects of music, such as in the way the sustain and decay of instruments are captured; yet at the same time it retains the classic VTL characteristic of solid and controlled bass.

Specifikationer



Functionality features

  • Circuit Features:Full front panel functionality:
    • Input select
    • MC Gain adjust: 5 steps of 6dB: 44dB, 50dB, 56dB, 62dB, 68dB
    • Load setting: MC: 100, 250, 470, 1K, 2.5K, 4.7K, 47K and User Defined, and MM – 10k, 22k, 47k and User Defined.
    • Mono switch
    • Phase flip, absolute, and channel to channel
    • RIAA select, for Enhanced RIAA and Rumble cut
    • Mute
  • Remote controllable Power, Input select, Mute, Phase reverse, Rumble cut, Mono, Gain, Cartridge Load
  • 2 single ended inputs, with discrete load settings for each input
  • Single-ended and Balanced outputs, with 68dB total gain balanced

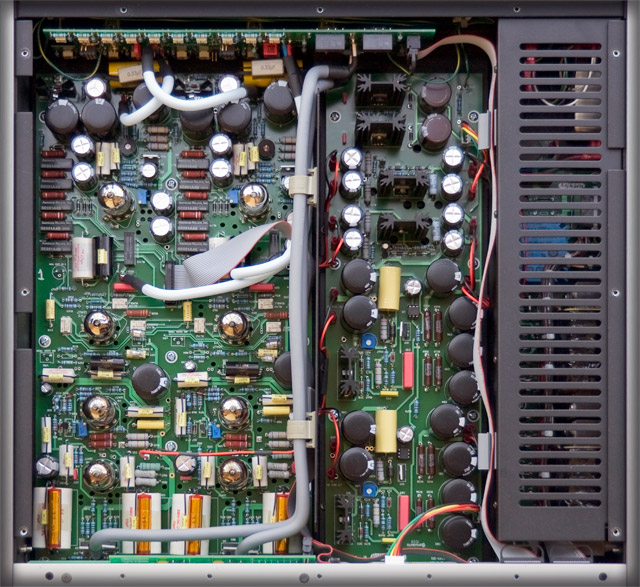

  • Active Hybrid low noise J-FET driving high current 12AU7 mc gain stage for highest resolution of small signal levels
  • All high fidelity tubes: 12AU7, 12AX7, 12AT7, all operating in linear range
  • Accurate 4-corner passive RIAA filter, with split pole for greater accuracy
  • Zero loop feedback
  • Gain trims for accurate channel to channel balance
  • Signature and Reference-level coupling capacitors
  • Shock mounted gain stages for resistance to vibration interference
  • Extensive RF filtering on AC path
  • Switchable RF filtering on both inputs
  • Low radiation UI core power transformers, with dual mono supplies, and separate logic supply
  • Dual mono multiple cascaded precision-regulated and shielded power supplies for low noise, with film bypass for high frequency performance
  • Transformer option for MC step up
  • Quiet sleep mode on processor when not in use
  • Quiet 7-segment LED display on the front panel (for gain and load display)

Physical features:

  • Rigid braced steel and aluminum chassis for EMI, RF, and hum shielding with minimal interference from vibration
  • All noisy components steel shielded for low RF and hum radiation
  • Additional steel shielding on amplifier section for lowest noise
  • Matching cosmetics to the TL6.5 and TL-7.5 Linestage Preamplifiers
