fully asynchronous
An ultra-high performance fully asynchronous DSD256 / 32-bit DAC with genuine versatility!
more dynamic than the human ear

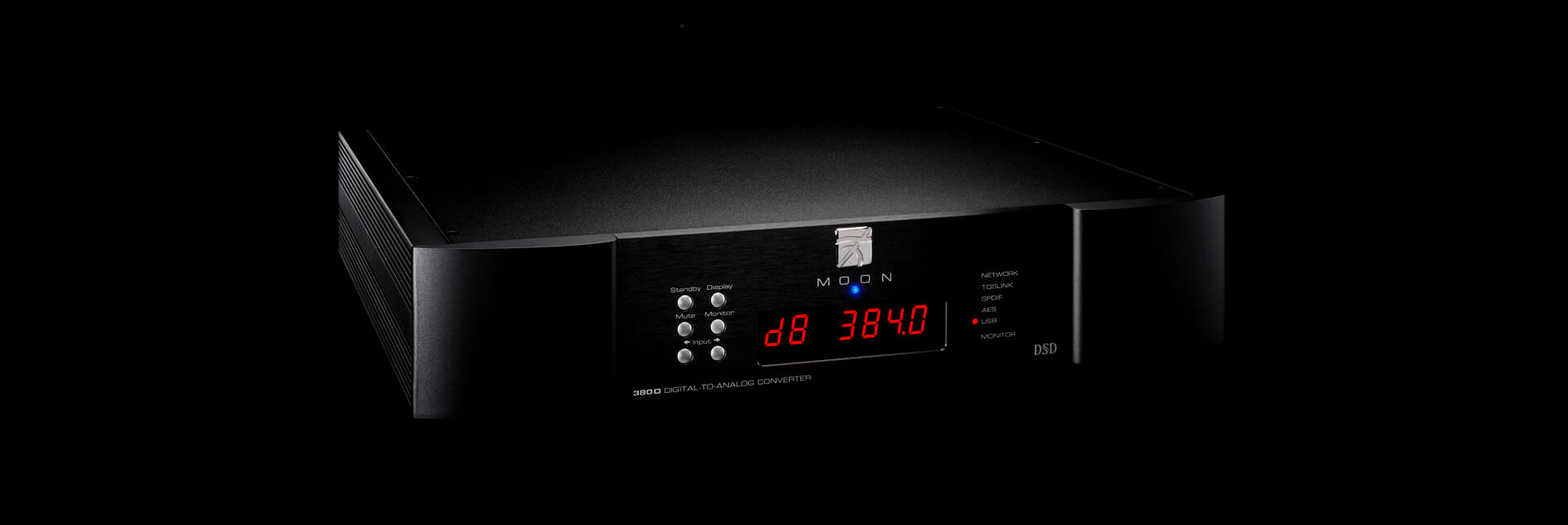

The 380D sets a new standard for high-end, high-peformance digital playback. A direct descendent of the MOON 650D, the 380D is not only incredibly flexible, but is also ready for the future. The 380D is actually more dynamic than the human ear can perceive. It will recover and deliver to you musical detail that you previously thought was simply not there.
digital input
Fitted with virtually every kind of digital input you will ever need, the 380D also includes our MiND streaming technology. For those individuals whose music comes purely from digital sources, an optional balanced preamplifier section with its own volume control is offered, allowing for direct connectivity of the 380D to a power amplifier. This effectively minimizes the number of required components to achieve high-performance music playback.
key features
Of course, key features you’d expect in a MOON product are present such as SimLink™, 12V trigger, RS-232 and IR ports for custom-install environments.
Design features
- Fully asynchronous DAC supports native DSD64, DSD128 and DSD256 (USB only) and PCM up to 384kHz (32-bit on USB only).
- 8 digital inputs (AES/EBU x 2, S/PDIF x 3, TosLink x 2 and USB x 1) allowing for a connection to virtually any digital source, along with one S/PDIF digital output.
- Full digital monitor loop on S/PDIF to accommodate external devices such as a room correction component.
- Our own “Dual Jitter Control System” produces a virtually jitter-free digital signal for ultra-low distortion, ensuring compatability with any connected digital device.
- The analog stage is a fully balanced differential circuit for increased dynamic range and headroom, higher resolution, as well as improved signal-to-noise ratio.
Product features
-
Frequency response (full range)2Hz – 100kHz +0/-3dB
-
THD @ 1kHz, 0dBFS (A-weighted)0.001%
-
Intermodulation distortion0.001%
-
Dynamic Range120dB
-
Signal-to-noise Ratio120dB @ full output
-
Channel Separation116dB
-
Intrinsic Jitter1 picosecond RMS
-
Analog Output @ 0dBFS2.0 Volts
-
Analog output impedance100Ω
-
PCM Bit-depth range16 – 32 bits
-
PCM sampling frequency rates44.1 – 384kHz
-
DSD sample ratesDSD64, DSD128 & DSD256
-
Shipping weight16 lbs. / 7.5 Kgs
-
Dimensions (width x height x depth)16.9 x 3.4 x 13.1 in
-
42.9 x 8.6 x 33.3 cm
