Vocals and cymbals float

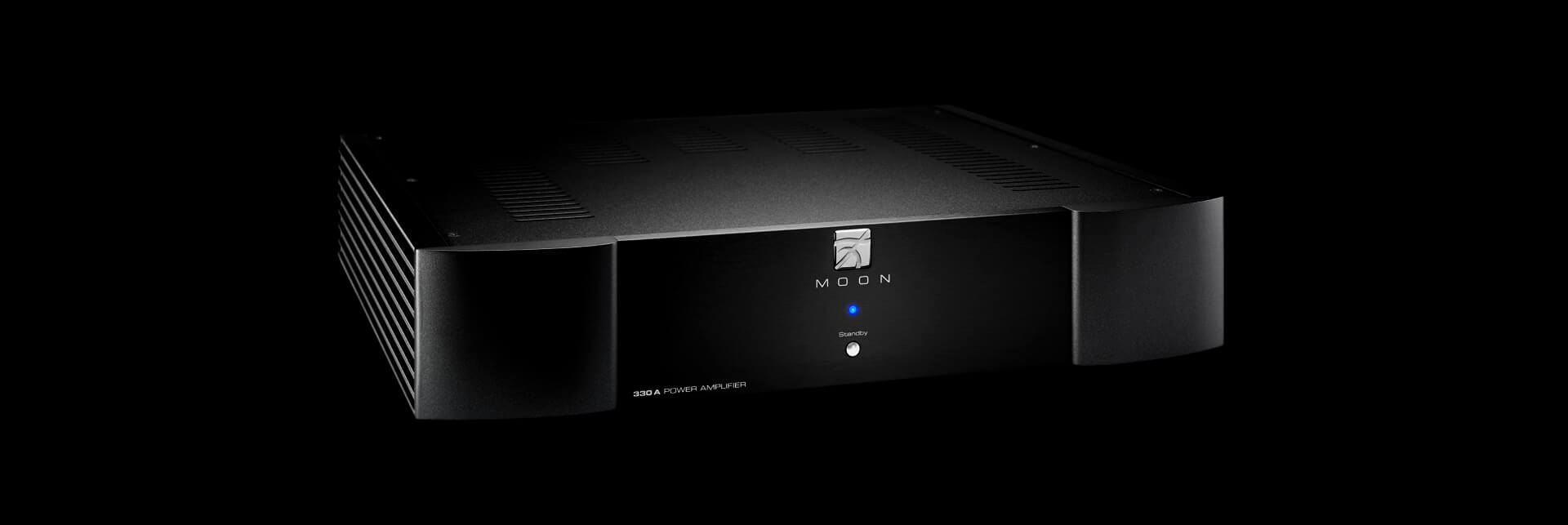

The MOON 330A represents not only an amazing value, but also amazing sound, period. It delivers a tight, extended and superbly authorative bass with power, weight and articulation. Vocals and cymbals float in a musical space filled with the air and natural ambience of a musical performance. When mated with the 350P Preamplifier, the combination provides a musical performance so complete and satisfying that one wonders if it can get any better.
famous and respected
Technically, the 330A is the stereo version of the flagship 400M Monoblock Amplifiers. Like all MOON products, the 330A is built to the highest standards of materials, quality control, reliability and performance that has made MOON products so famous and respected around the world.
key features
Of course, key features you’d expect in a MOON product are present such as 12V triggers and an RS-232 port for custom-install environments.
Design features
- Balanced differential circuitry.
- Precision matched proprietary MOON Bipolar output transistors for improved bass response and accurate sonic reproduction.
- An oversized power supply using a custom proprietary toroidal transformer design.
- A high damping factor yielding superior musical dynamics, improved signal speed & refined timbre accuracy.
- “Class A” output to 5 watts for greater efficiency.
- Optimized selection of very high quality electronic components.
Product features
-
Output Power at 8Ω125 Watts per channel
-
Output Power at 4Ω250 Watts per channel
-
Output Power – Bridged mono at 8Ω400 Watts
-
Input Sensitivity800mV RMS
-
Input Impedance47,500Ω
-
Gain31dB
-
Signal-to-noise Ratio100dB @ full power
-
Frequency response (full range)10Hz – 125kHz +0/-3dB
-
THD (20Hz – 20kHz @ 1 watt)0.02%
-
THD (20Hz – 20kHz @ 125 watts)0.05%
-
Intermodulation distortion0.02%
-
Shipping weight33 lbs / 15 Kgs
-
Dimensions (width x height x depth)16.9 x 3.5 x 14.0 in
-
42.9 x 8.9 x 35.6 cm.
