MOON 680D är en av världens bästa streamers/DAC
En av våra absoluta favoriter i den figitala världen är MOON 680D. Den spelar musik på sätt som inte lämna någon oberörd. Samtidigt som ljudet är dynamiskt, rappt och engagerande, så låter 680D dig släppa ner axlarna och bara njuta.
När Hifi & Musik testade 680D tillsammans med försteget 740P och slutstegen 860A v2 var det något bland det bästa de någonsin haft på redaktionen för test, oavsett prisklass.
Nedan följer några uttdrag från andra tester.
”I review a lot of gear and most of the time I’m pleased when the review period has expired, I’ve packed the device up and the courier has taken it away. But this time I mourned the departure of the Simaudio Moon 680D player. I suspect it’s going to be quite a while before I again get to enjoy such a fine combination of audio performance and practical design.”
Stephen Dawson, Soundstage Ultra
”Great build quality, great looks, great sound. Who could ask for anything more? In case you missed it, I loved this DAC. If the 680D falls within your budget, you should definitely check it out. It took me a couple of weeks after the departure of the 680D before I could readjust to my system without it. As far as I’m concerned, the only thing wrong with the 680D is that it is no longer here.”
Will Wright, Positive Feedback
Design features
- Roon Ready device
- DSD and MQA decoding from all digital inputs
- Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services
- Multi-room synchronized playback

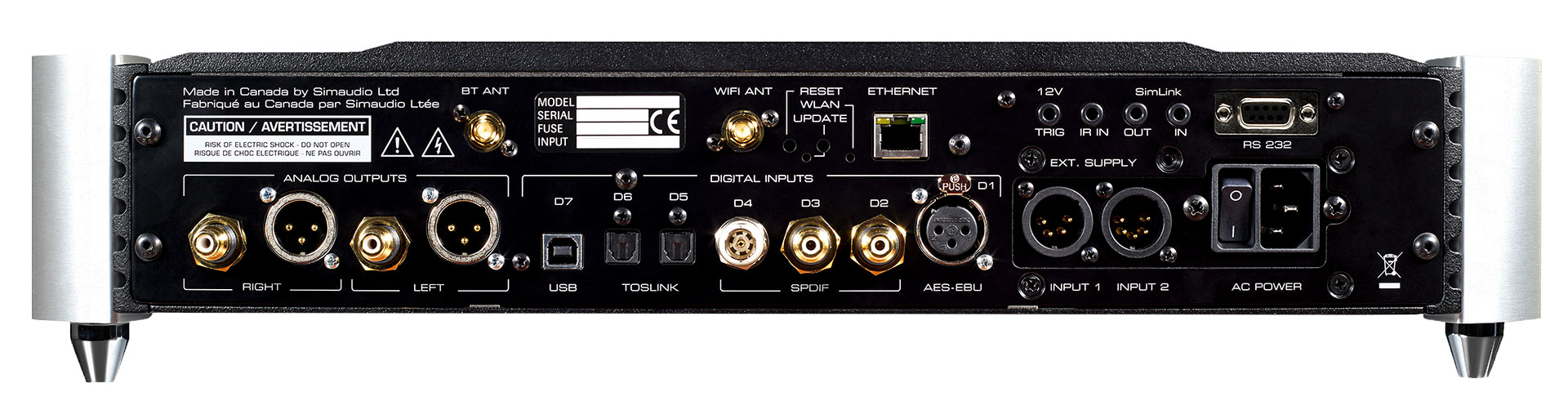

- 9 digital inputs : USB, AES/EBU, SPDIF, Optical, Ethernet, Wi-Fi and aptXTM audio for Bluetooth®

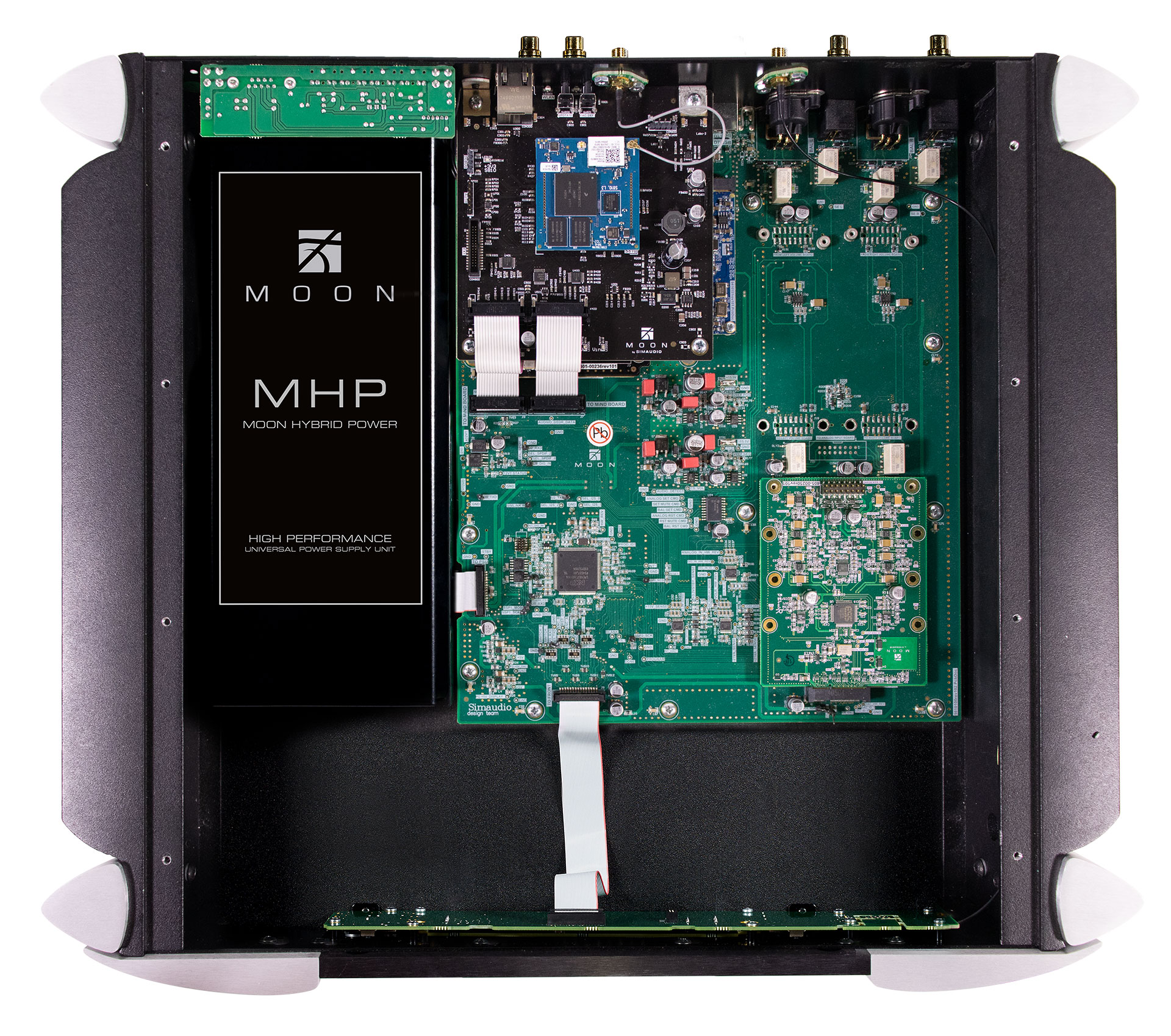

- Power supply using new MOON Hybrid Power (MHP) for exceptionally stable, ultra low noise DC output
- 12 stages of DC voltage regulation which includes 2 stages of M-LoVo (MOON Low Voltage Regulation) and 4 stages of i2DCf (Independant Inductive DC Filtering)
- On-board programmable software for customization of the end-user interface
Specifications
-
Frequency response (full range)
2Hz – 100kHz +0/-3dB
-
THD @ 1kHz, 0dBFS (A-weighted)
0.0005 %
-
Intermodulation distortion
0.0003 %
-
Dynamic Range
123 dB
-
Signal-to-noise Ratio
123 dB @ full output
-
Channel Separation
120 dB
-
Intrinsic Jitter
1 pico seconds RMS
-
Analog Output @ 0dBFS
2.0 V
-
Analog output impedance
100 Ω
-
PCM Bit-depth range
16 – 32 bits
-
PCM sampling frequency rates
44.1 – 384 kHz
-
DSD sample rates
DSD64, DSD128 & DSD256
-
Shipping weight
38 lb / 18 kg
-
Dimensions (width x height x depth)
18.75 x 4.0 x 16.8 in
-
47.6 x 10.2 x 42.7 cm
